Quartz Electric Heating Elements provide medium-wave infrared energy with a fast heat up and cool down time. With element temperatures ranging from 1000 °F (537°C)  up to 2000°F (1093°C)  the elements produce infrared energy in the 2 to 3.5 micron range. Lower operating temperatures produce longer wave lengths. Quartz Infrared offers both clear and satin (translucent) quartz. Clear quartz radiates about 95% of the infrared energy directly, whereas satin quartz absorbs about 35% of the energy and radiates it at a longer wavelength.

Depending on the design, our elements can reach full output in as little as 30 seconds and typically cool down to 50 percent output in under 15 seconds. The quartz element is ideal for applications where process stoppages are anticipated or a quick heat up or cool down is necessary. The elements can be turned off between production runs to save energy, and/or can have their output controlled with inexpensive dials for precise control.

For more advanced information see 'Industrial Applications of Electric Infrared Heating' compliments of 'Advanced ENERGY'.

Performance Capabilities
  • Standard watt densities up to 80 Watts per inch of heated length (32W/cm), and up to 100 Watts per inch by request*
  • Element temperatures up to 2000°F (1093°C)

Features and Benefits
  • Fast delivery (in as little as 2 days*) on all standard replacement elements means less downtime, or JIT delivery.
    Typical lead time is days, not weeks.
  • Termination styles are available for virtually every application on the market, as well as custom terminations.*
  • Ceramic end caps can be bonded to the quartz tubing ends, to provide a rigid support for terminations, or,
    un-bonded is also available.
  • Minimal visible light is created due to low emission in the visible spectrum.
    No need to shade an operator's eyes.
  • No process contamination occurs with this clean heat  source.
    They can be used in virtually any environment (except vacuums and volatile fumes).
  • Direct Radiation means little energy is wasted heating the surrounding area.
    Your target material absorbs the energy directly.
  • Vertical models are available to provide additional flexibility in the design of your equipment.
    The element can be positioned to best reach it's target.

* Contact us for further details on:
  • Fast delivery
  • Custom terminations, including custom ceramics
  • Higher watt density

Use our Contact Form to request more information.



Brackets

Element Orientation

The first step in designing or purchasing a Quartz element is determining if it is mounted in a horizontal or vertical position. Typically, Quartz elements are mounted in a horizontal position. This is the simplest design. However, some applications require the element to be in a vertical position. The only difference that makes in the design of the element is that the element coil cannot be stretched; it must be tightly wound such that it can support itself in a vertical position. This requires additional processing on the coil to form an insulating coating on the wire so there is no electrical contact between the turns of the coil. Vertical or Close Wound coils are not a problem for us. We can make these in any length, but due to the more stringent physical specifications of the coils, some designs may not be possible. Note: A minimum purchase is required for these elements due to the extra processing required.



Reference Dimensions

Reference dimensions never include termination screws or wires. Please check your dimensions carefully when selecting replacement elements. All of our products will include a S-S, T-T or both reference length/s in the product description. For more details on a particular model type, see the Standard cap chart below.

Tipped Caps

Flat Caps



Product Tolerances:

Electrical tolerances:

  • Resistance/Wattage: +/- 5 percent
  • Maximum amperage: 20A
  • Maximum volts: 600 volts, but varies by element length. Contact us for specifics

Length tolerances:

  • Tube+Ceramic: ±.050 inch (1.25 mm)
  • Heated length: ± 1/4 inch (6.3 mm)

Cold Ends:

  • 1 inch (25 mm) standard



Tolerances

Physical Specifications:

Quartz Glass:
Outside diameter:
  • 3/8 inch/0.394 inch (10 mm)
  • 1/2 inch/0.472 inch (12 & 13 mm)
  • 5/8 inch/0.630 inch (16 mm)

Standard lengths:

Satin quartz:

  • 3/8 inch tubes:4 inches to 48 inches (100 mm to 1220 mm)
  • 1/2 inch tubes:4 inches to 90 inches (100mm to 2286mm)
  • 5/8 inch tubes:4 inches to 110 inches (100mm to 2880mm)

Clear quartz:

All 3 sizes; 3/8, 1/2, and 5/8: 4 inches to 51 inches
(100mm to 1300mm), longer by special request.

Quartz



Terminations:
Stud terminal:
  • 3/8 inch tubes: 6-32 thread x ½ inch
  • 1/2 inch tubes: 8-32 thread x ½ inch
  • 5/8 inch tube: 10-32 thread x ½ inch
  • Other lengths available
Other Terminations:


Click an image for more details.



Standard End caps:

3/8 inch tube:

  • Tipped Over cap
  • Flat Over cap

1/2 inch tube:

  • Tipped Over cap
  • Flat Over cap
  • Tipped Insert cap
  • Tipped Long Insert cap
  • Notched Over cap
  • Slotted Over cap

5/8 inch tube:

  • Tipped Over cap
  • Tipped Heavy Duty Over cap
  • Flat Over cap
  • Notched Over cap

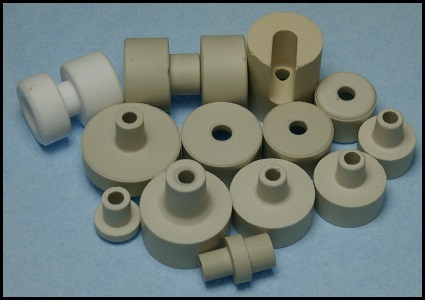

Standard Caps



Standard cap comparison chart

Hover over a cap image to see the technical specifications for that style/size.

Click on the image to see the technical specifications page for that style/size.

To see a reverse of this chart showing all caps by technical specifications, click here.

 Cap Type

 Glass Sizes



3/8"

1/2"

5/8"

1"

Tipped Over Cap

Heavy Duty Tipped Over Cap

Flat Over Cap

Tipped Insert Cap

Notched Over Cap

Slotted Over Cap



Standard Models

3/8 Inch Infrared Elements


3/8 Inch tubes are generally used in more 'delicate' applications, and generally limited to 40 watts per inch of heated length.
They are available from stock in clear up to 51 inches, and in translucent up to 60 inches.


Click on a cap style to see typical units in that style.

Flat Cap and Stud
Flat Cap and Stud
Over Cap
Over Cap
Over Cap and Stud
Over Cap and Stud
Over Cap and Lead Wire
Over Cap and Lead Wire


1/2 Inch Infrared Elements


1/2 Inch tubes are the most popular size, and generally limited to 60 watts per inch of heated length.
They are available from stock in clear up to 51 inches, and in translucent up to 90 inches.


Click on a cap style to see typical units in that style.

Flat Cap and Stud
Flat Cap and Stud
Insert Cap
Insert Cap
Insert Cap and Lead Wire
Insert Cap and Lead Wire
Insert Cap and Stud
Insert Cap and Stud
Over Cap
Over Cap
Over Cap and Lead Wire
Over Cap and Lead Wire
Over Cap and Stud
Over Cap and Stud
Notched Cap and Lead Wire
Notch Cap and Lead Wire
Notched Cap and Stud
Notch Cap and Stud
Notched Cap and Terminal
Notch Cap and Terminal
Slotted Cap and Lead Wire
Slot Cap and Lead Wire



5/8 Inch Infrared Elements


5/8 Inch tubes are very popular in more demanding applications, and generally limited to 80 watts per inch of heated length.
They are available from stock in clear up to 51 inches, and in translucent up to 110 inches.


Click on a cap style to see typical units in that style.

Flat Cap and Stud
Flat Cap and Stud
HD Cap and Lead Wire
HD Cap and Lead Wire
HD Cap and Stud
HD Cap and Stud
Over Cap
Over Cap
Over Cap and Lead Wire
Over Cap and Lead Wire
Over Cap and Stud
Over Cap and Stud
Notched Cap and Stud
Notch Cap and Stud

If you don't see the elements your system uses, please feel free to contact us for further details.
